2024 Mercury Pro XS 200 hp
| Feature | Specification |
|---|
| Engine Type | 4.6 L V‑8, DOHC, 32-valve |
| Horsepower | 200 hp (149 kW) |
| Fuel System | EFI with Advanced Range Optimization |
| Ignition | SmartCraft PCM 112 with Transient Spark |
| Alternator Output | 85 amp with Idle‑Charge |
| Gearcase Ratio | 1.75:1 (TorqueMaster) / 1.85:1 (standard) |
| Shaft Length | 20″ or 25″ |
| Weight | ~505–511 lb (229–232 kg) |
| Trim/Tilt Range | 20° trim, 73° tilt |
| Fuel Requirement | 87 octane (up to 10% ethanol) |
| Warranty | 6 years |
| Ideal Use | Performance boating, tournament fishing |

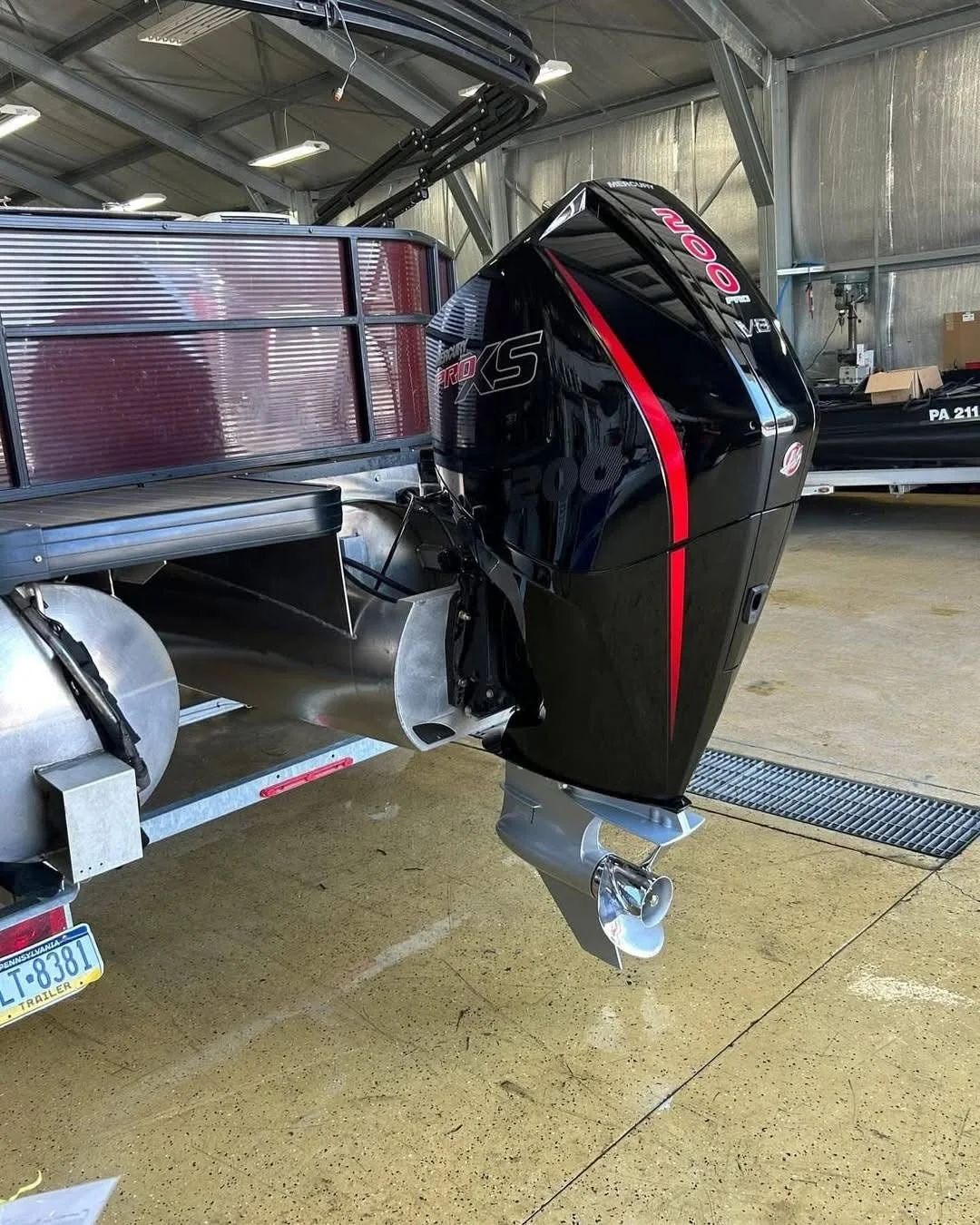

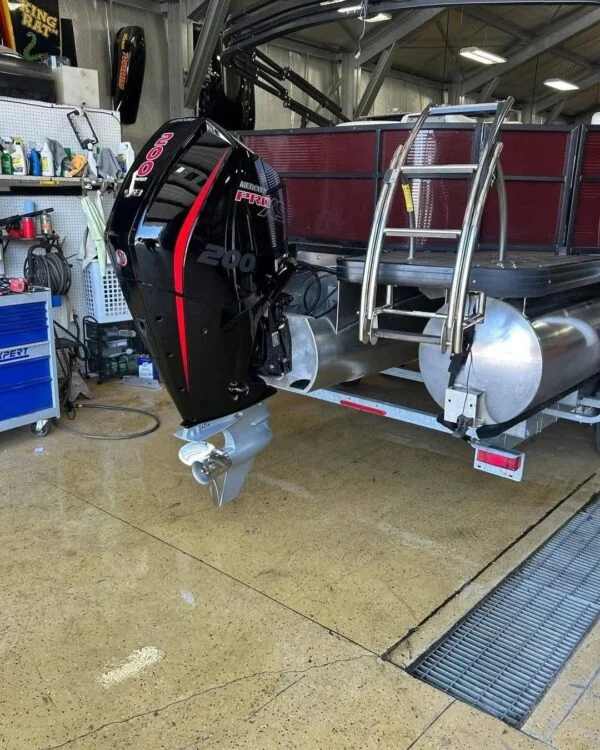

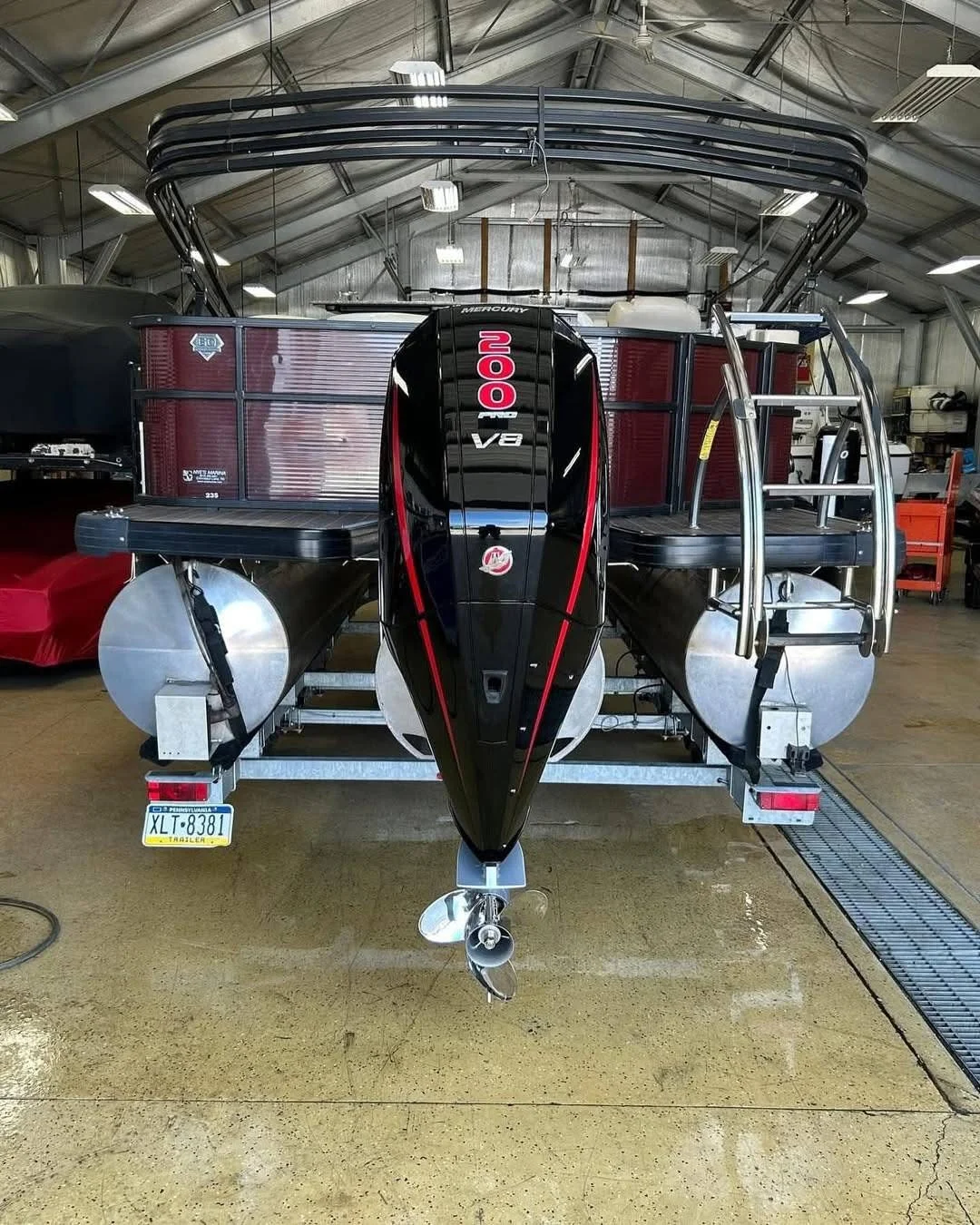

The 2024 Mercury Pro XS 200 hp is a high-performance V‑8 outboard engine from Mercury’s Pro XS line, engineered for serious anglers, tournament fishermen, and powerboat enthusiasts who demand exceptional acceleration, top speed, and reliability.
Engine & Performance
-
Power Output: 200 hp (149 kW), V‑8, 4.6 L displacement (279 CID).
-
RPM Range: Optimized at 5,600–6,200 RPM for maximum efficiency and power.
-
Fuel Injection: Electronic Fuel Injection with Advanced Range Optimization for cleaner, efficient combustion.
Smart Features & Tuning
-
Transient Spark Technology: Electronically adjusts ignition timing for rapid hole‑shot acceleration and added torque when you need it most.
-
Adaptive Speed Control: Automatically maintains RPM under varying loads without manual throttle adjustment — a first in the outboard engine industry (on select models).
-
Performance‑Tuned Exhaust: Delivers a distinctive, powerful tone that’s refined yet quieter than competing engines.
Electrical & Power Management
-
Alternator Output: 85 amps (1,071 W) at WOT, with Idle‑Charge technology boosting output at low RPMs to recharge batteries efficiently.
-
Engine Guardian System: SmartCraft digital support provides engine warnings and compatible dashboards (e.g. DTS controls).
Mechanical Specs
-

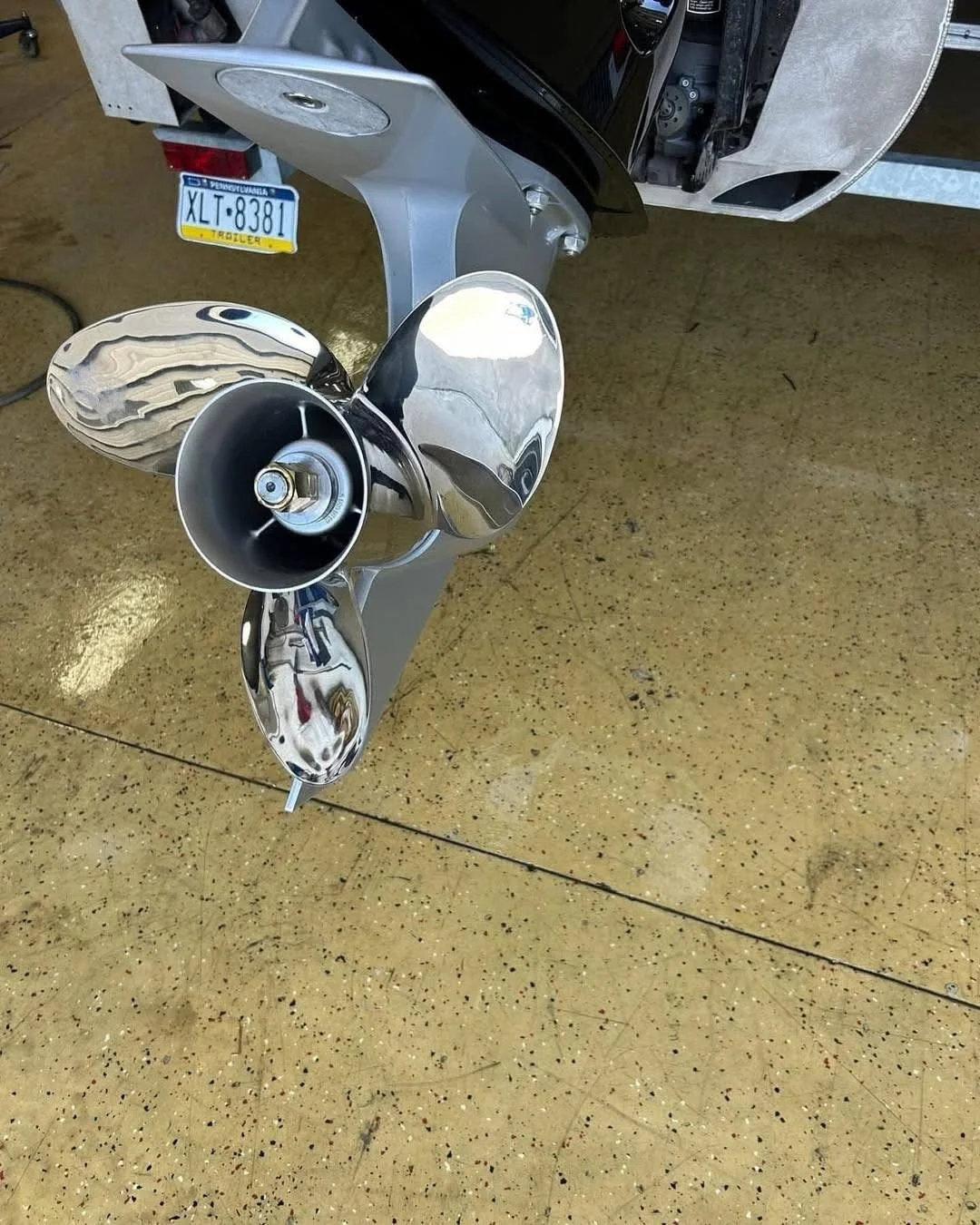

Gearcase Options: Lightweight TorqueMaster 1.75:1 with 1.25″ shaft, or standard 1.85:1 (5.44″) gearcases available in 20″ or 25″ shaft lengths.
-
Trim/Tilt: Power trim and tilt with a max range of 20° trim and 73° tilt.
-
Weight: Dry weight approximately 505–511 lb (229–232 kg) depending on configuration.
Fuel & Maintenance
-
Fuel: Designed to run on 87‑octane fuel (R+M/2) or 90 RON with up to 10% ethanol.
-
Oil: Use NMMA FCW SAE 10W‑30 certified oil or Mercury OptiMax/DFI as applicable.
-
Emissions: CARB 3-star rating for cleaner emissions compliance in many jurisdictions.
Warranty & Use Cases
-
Warranty: Offers a robust 6-year factory warranty (typically 3+3 year coverage) for peace of mind .
-
Best For: Tournament fishing (especially bass fishing), high-performance boating, and fast cruising where immediate throttle response and speed matter.
